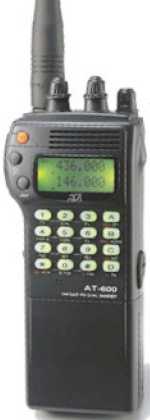

ADI AT-600HP
| Type: |
Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-148 / 430-450 MHz
RX: 108-174 / 400-470 / 900-985 MHz |
| Mode: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5 W
Lo: ? W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: 20-250 mA
TX: Max 1.4 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
CTCSS and DTMF |
| Related Documents: |
User Manual (3.1 MB) |
 |
